Description

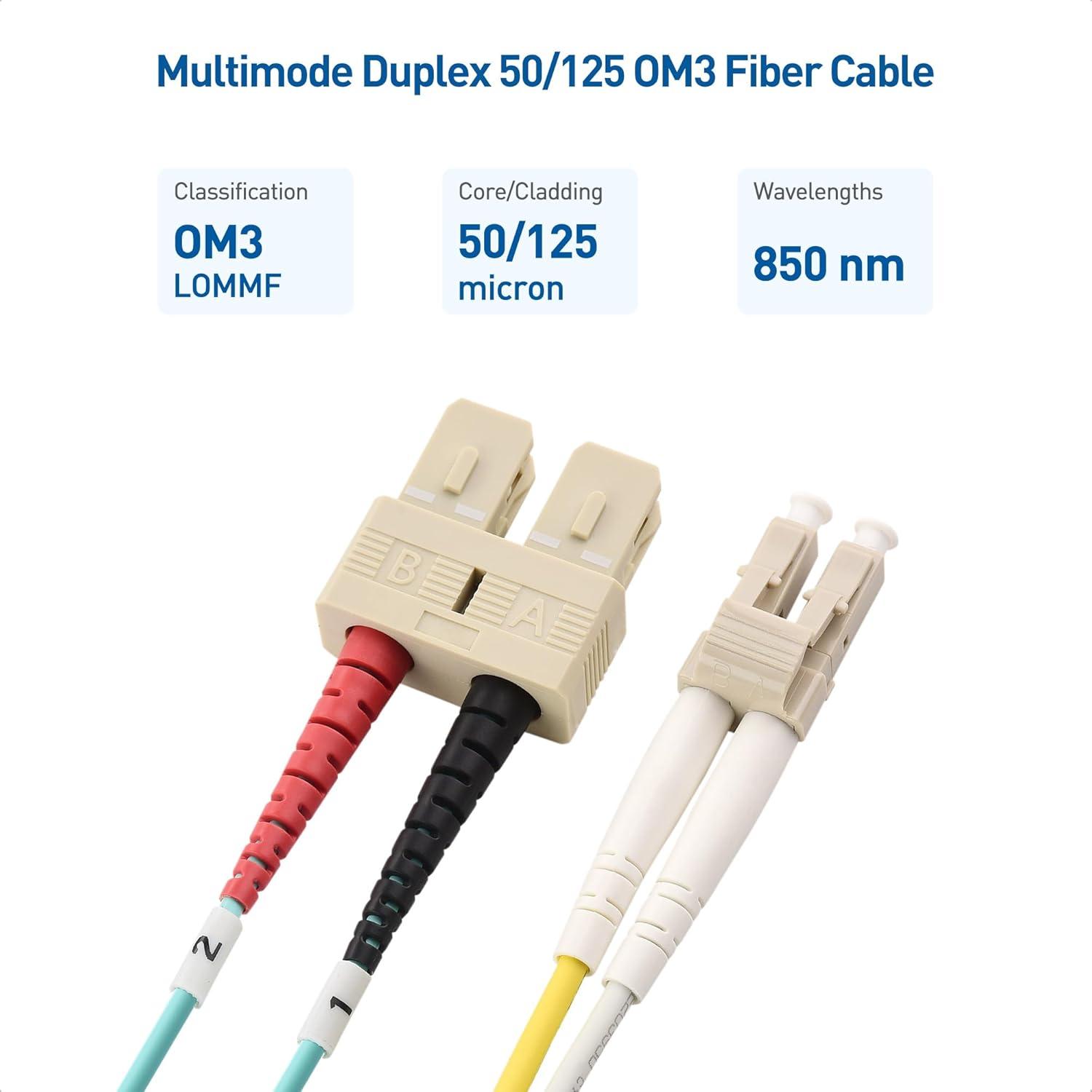

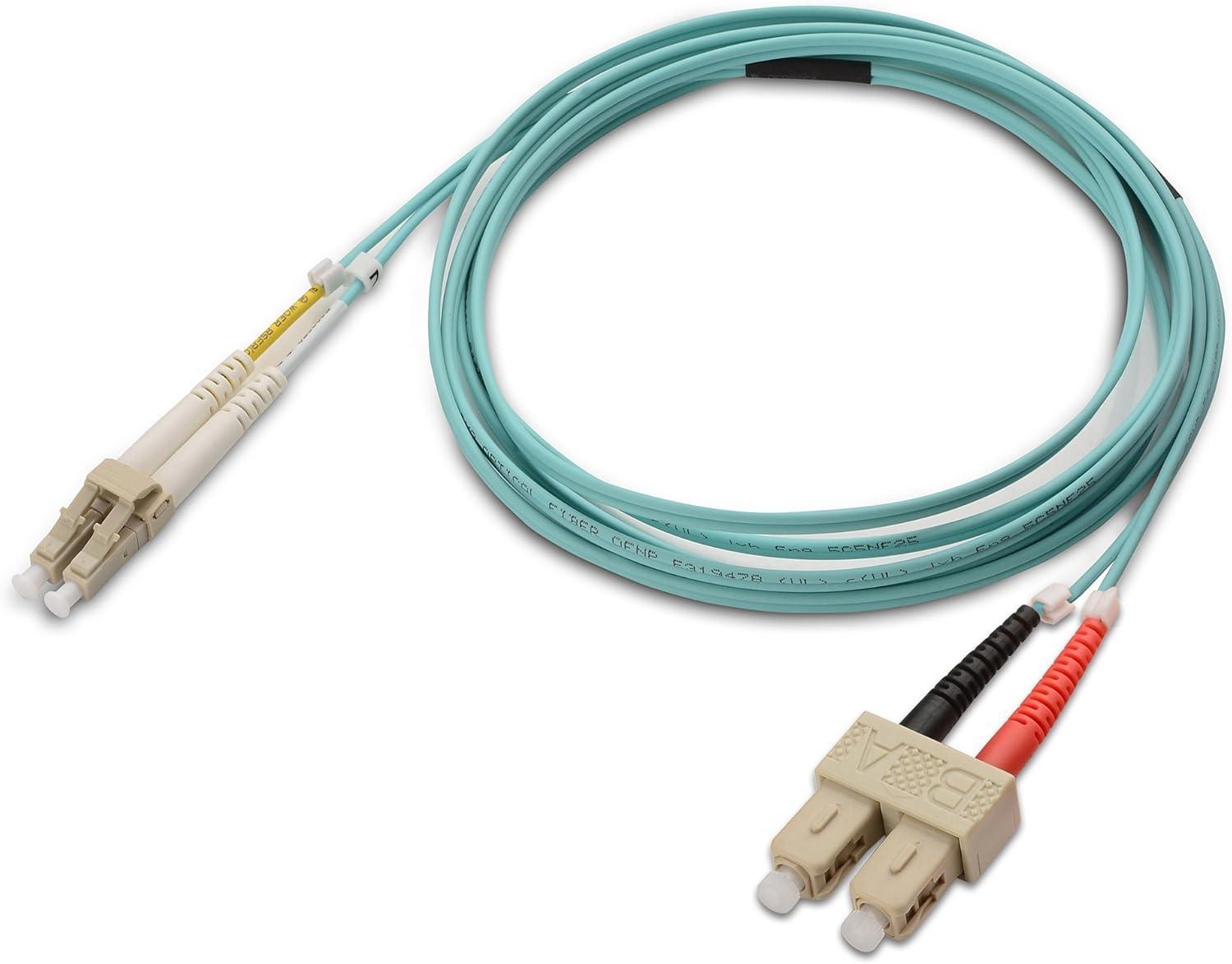

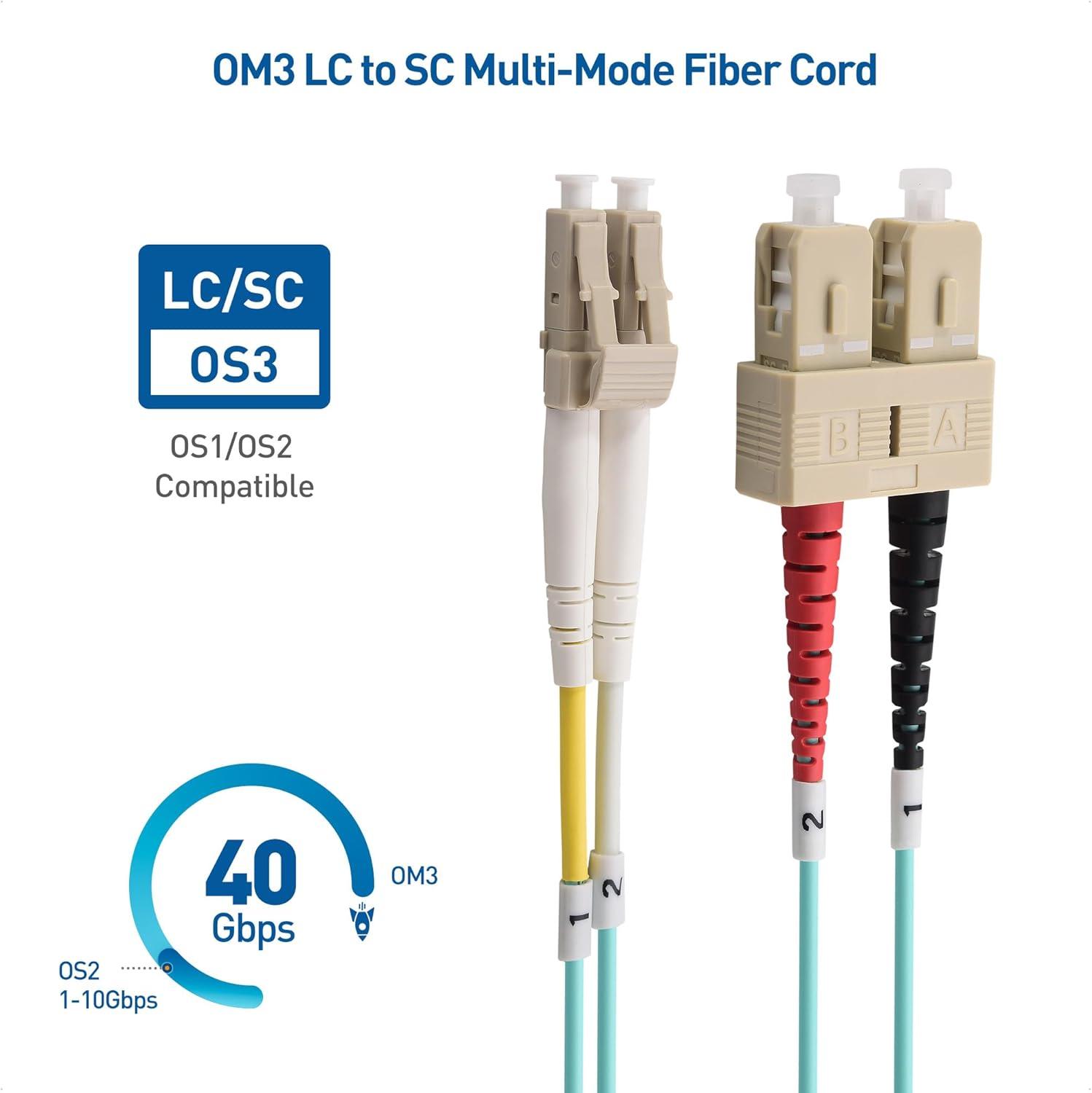

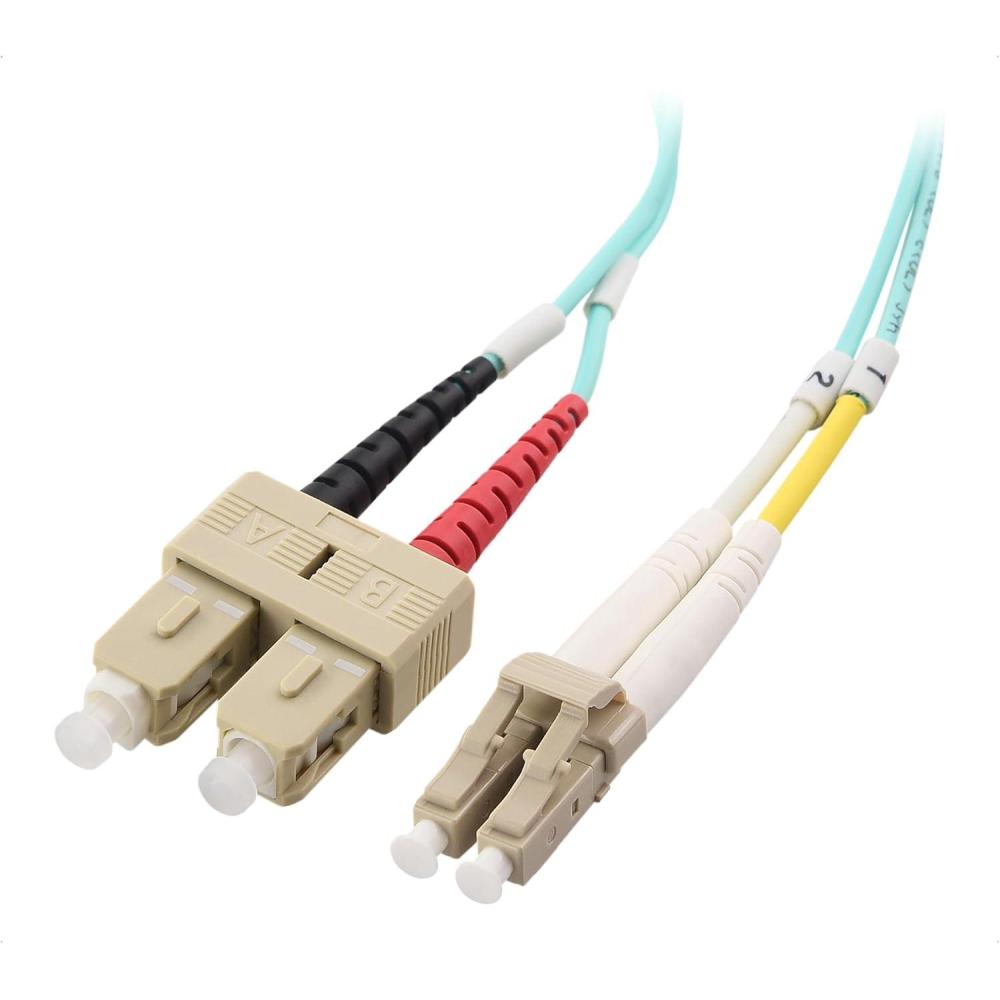

Multimode fiber duplex OM3 50/125 micron fiber cables with dual small form factor LC to legacy SC connectors are designed for 10 Gigabit applications in SAN networks and data centers; OM3 LOMMF (laser optimized multi-mode fiber) rated;? Connects to VCSEL laser network equipment such as SFP+ transceivers, Ethernet switches, media converters, industrial Ethernet devices, and optical fiber NIC's; Compatible with all multimode 50/125 micron fiber cabling

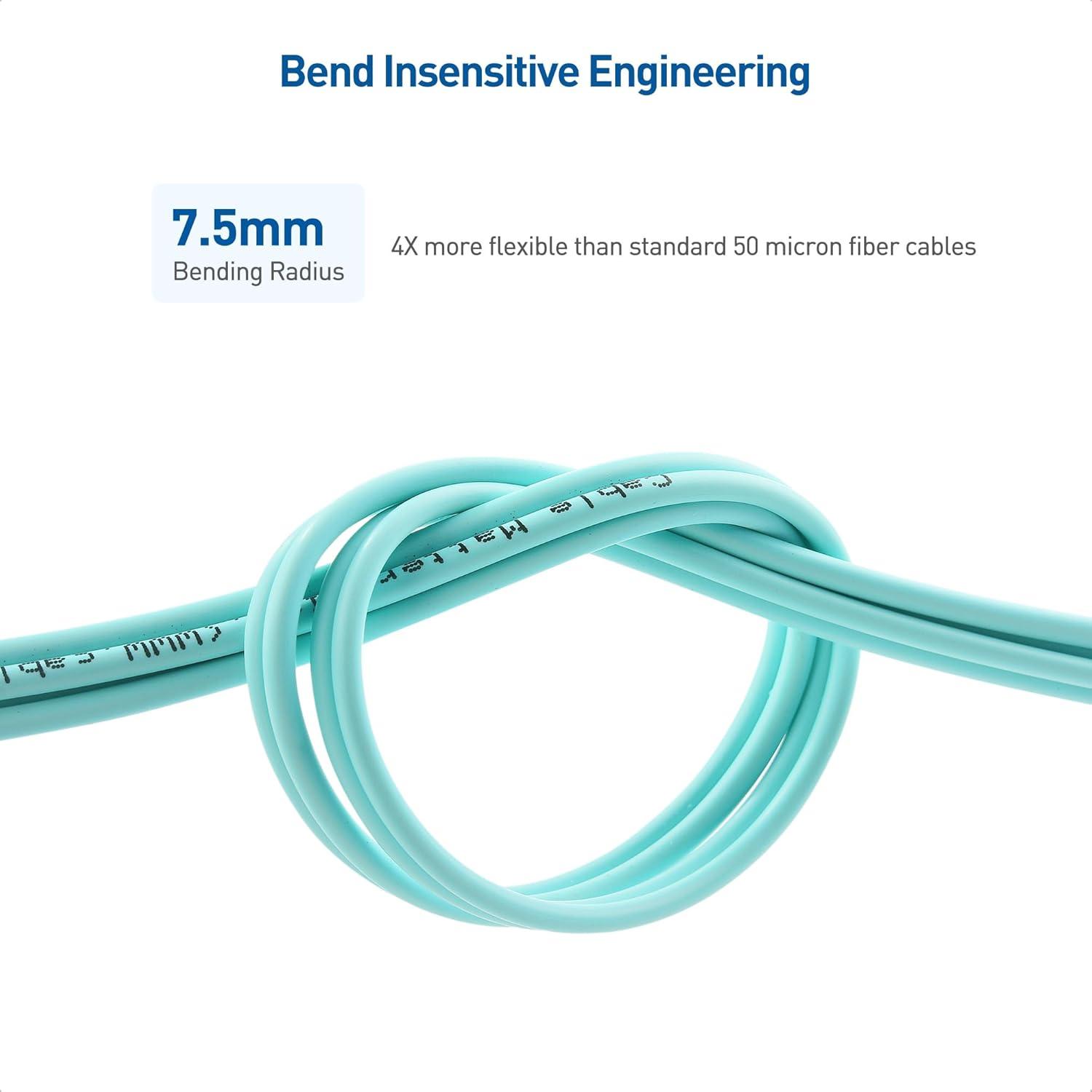

Bend insensitive design of the LC to SC cable allows for a 7.5mm bending radius that is 4X more flexible than standard 50 micron fiber cables without introducing any macro-bending loss; Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high density installations with cables crammed into an extremely small footprint; Bend insensitive multimode fiber (BIMMF) is interoperable with standard OM3 cabling systems

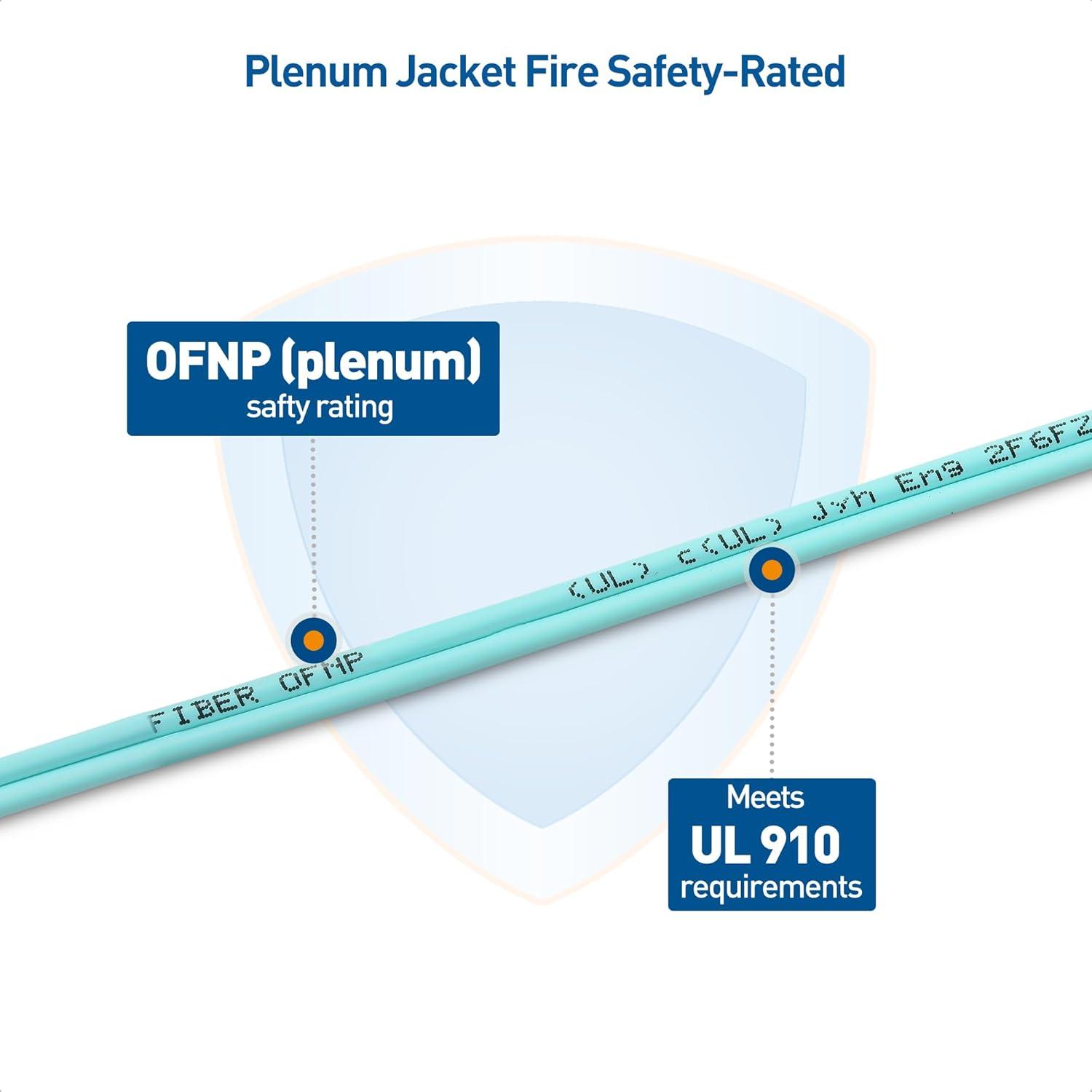

Standards compliant OM3 cable includes a superior OFNP (plenum) safty rating that substitutes for OFNR (riser) rated cable; TIA/EIA compliant color-coded aqua jacket has beige connectors and straight-thru A to B wiring; OM3 classification rating operates with Gigabit Ethernet 1000Base-LX, 1000Base-SX, or 10GBase-S/LR4/LRM, and Fibre Channel 100/200/400/1200-MX; Backwards compatible with FDDI, and Fast Ethernet 10/100BASE SX or FX

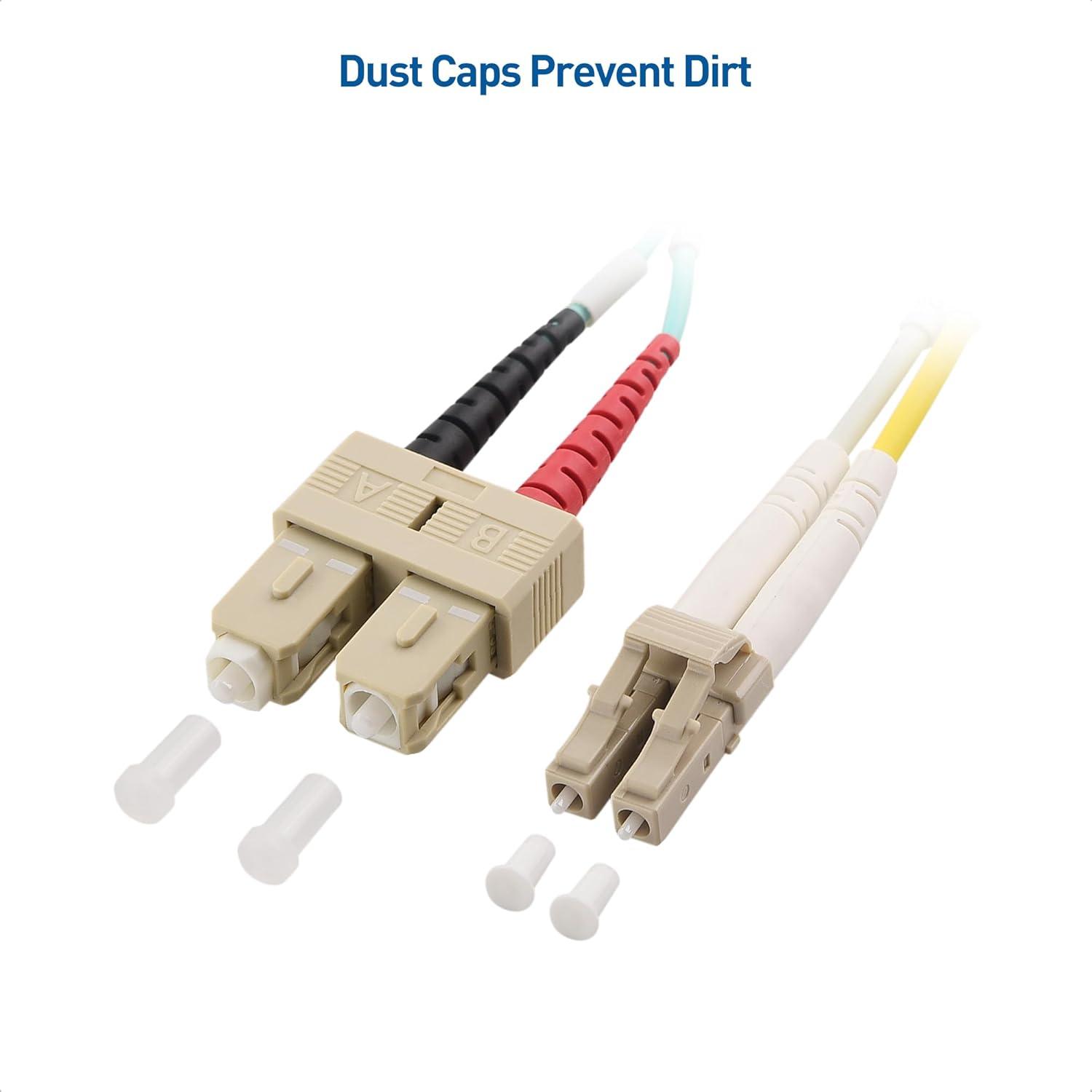

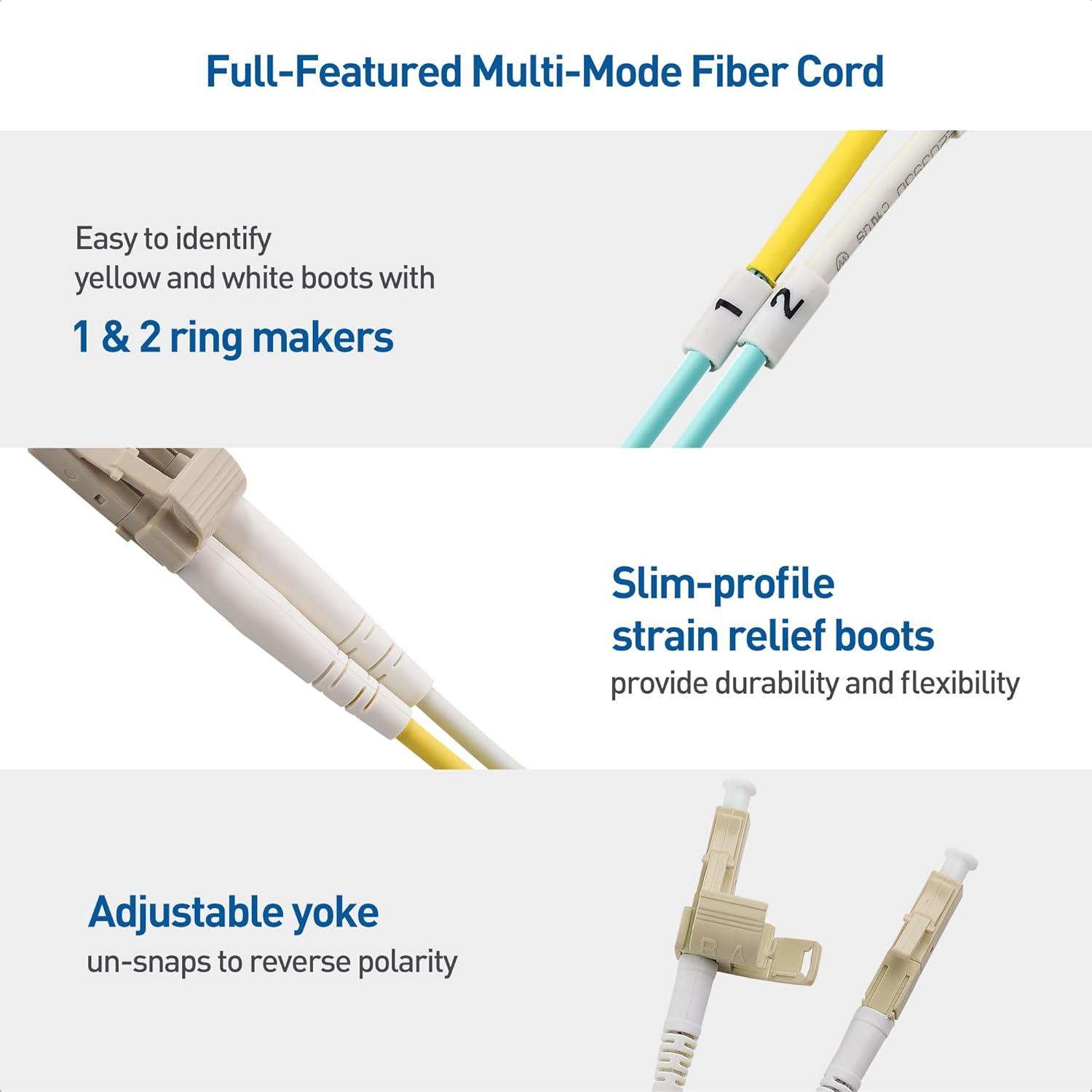

Rapid installation with adjustable clips and dust caps that protect the fiber while allowing individual access; A/B position labels on the duplex clip and labeled tags provide quick identification when troubleshooting; Superior construction combines a 100% factory tested, tight-buffered cable with a duplex 2.0 x 4.2mm Zipcord design, LC and SC connectors in a protective yoke, slim-profile boots with cable strain relief, and PC polish, and zirconia ceramic ferrules for precise alignment
