Description
Full metal jacket RJ45 field terminable plug for Cat 6A cable assemblies, wireless access points, and network switch and server connections; Robust die-cast housing provides superior shielding and mitigates alien crosstalk; Rugged metal alternative to RJ45 modular plugs
Cat6a performance for a 10GBASE-T channel compliant network to support 10 Gb Ethernet; Fully backwards compatible with Cat 5e or Cat 6; Cat6A Shielded connector supports 23 to 26 AWG solid or stranded Shielded wire with an outside diameter between 6.0 and 7.5mm

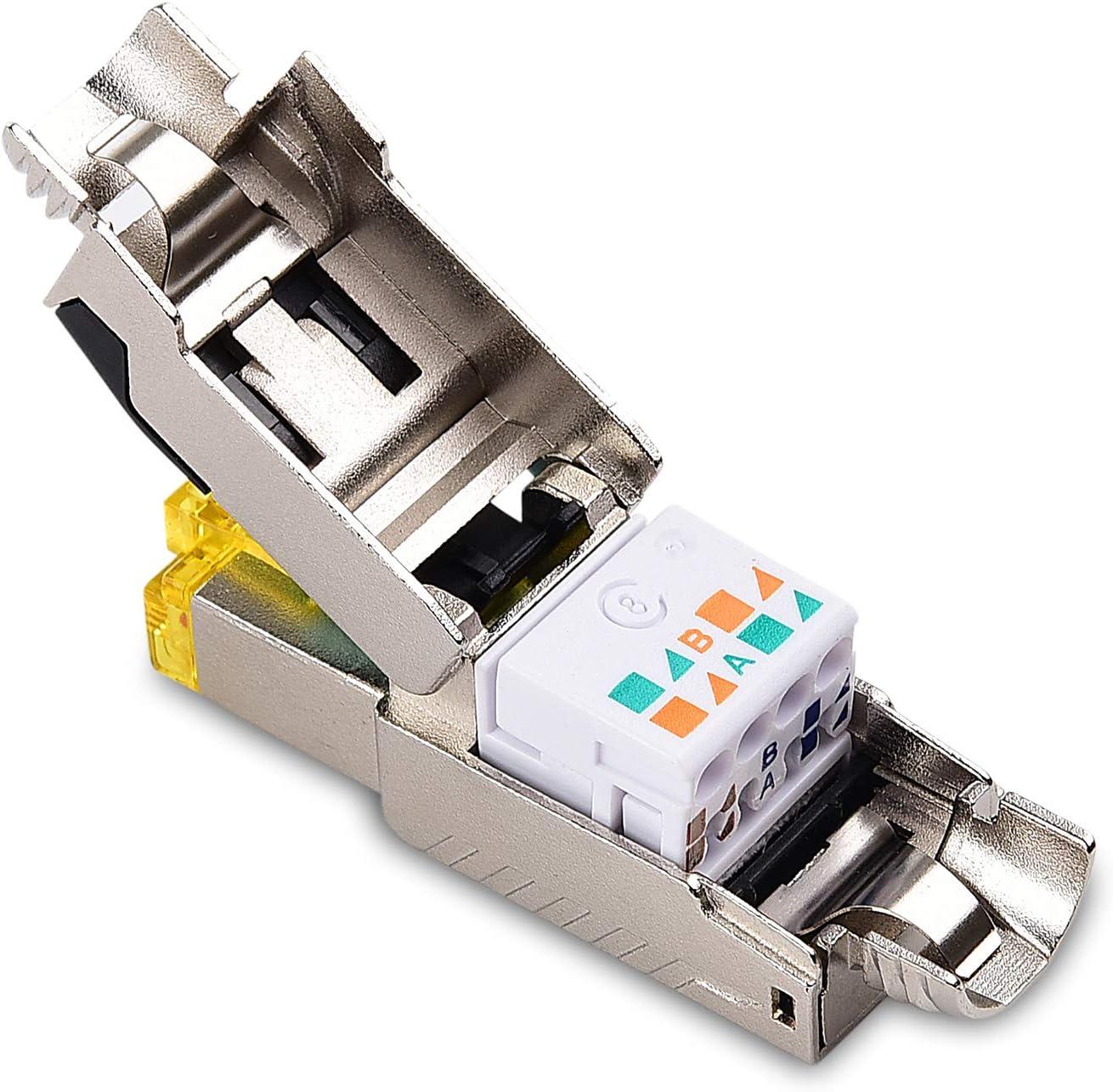

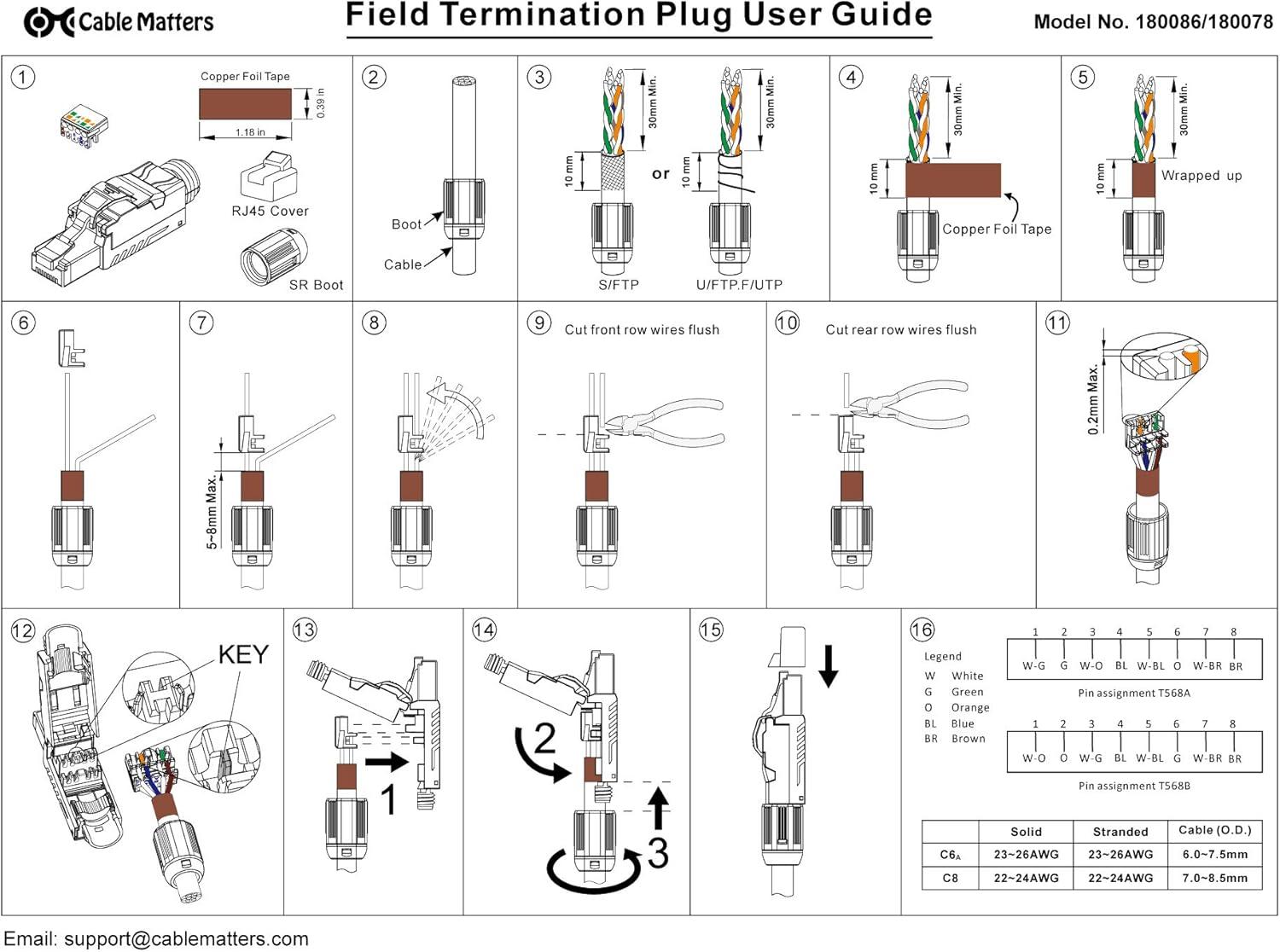

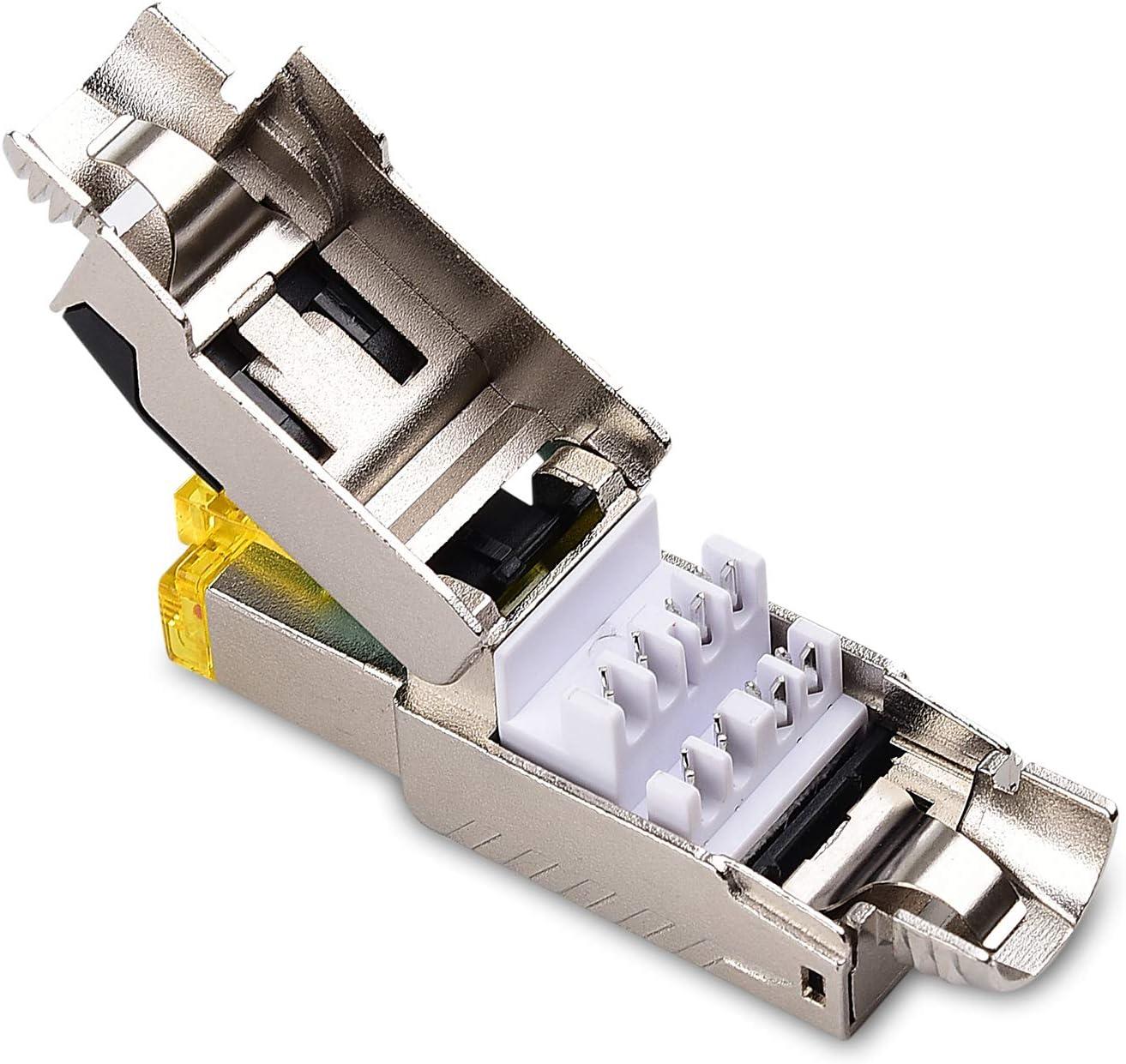

Impact tool free RJ45 connector with an open hinged design simplifies placement and termination of bulky Shielded cable compared to a cramped modular plug; IDC modules can be wired for T568A or T568B wiring
Superior construction of RJ45 connectors combines a one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, and AXT electromagnetic noise and crosstalk; A screw-on metal strain relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover protects the RJ45 contacts when transporting or storing a terminated cable

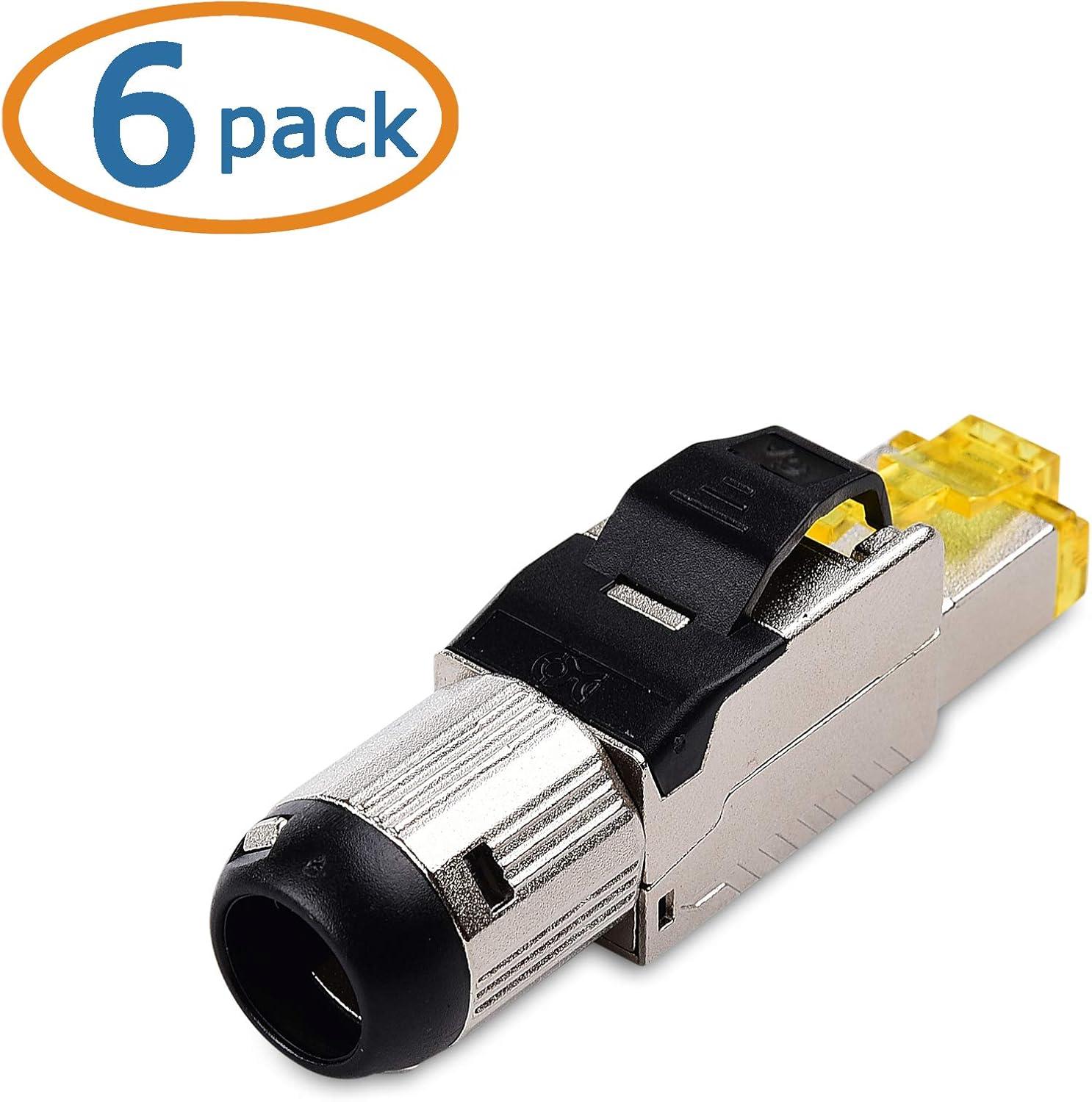

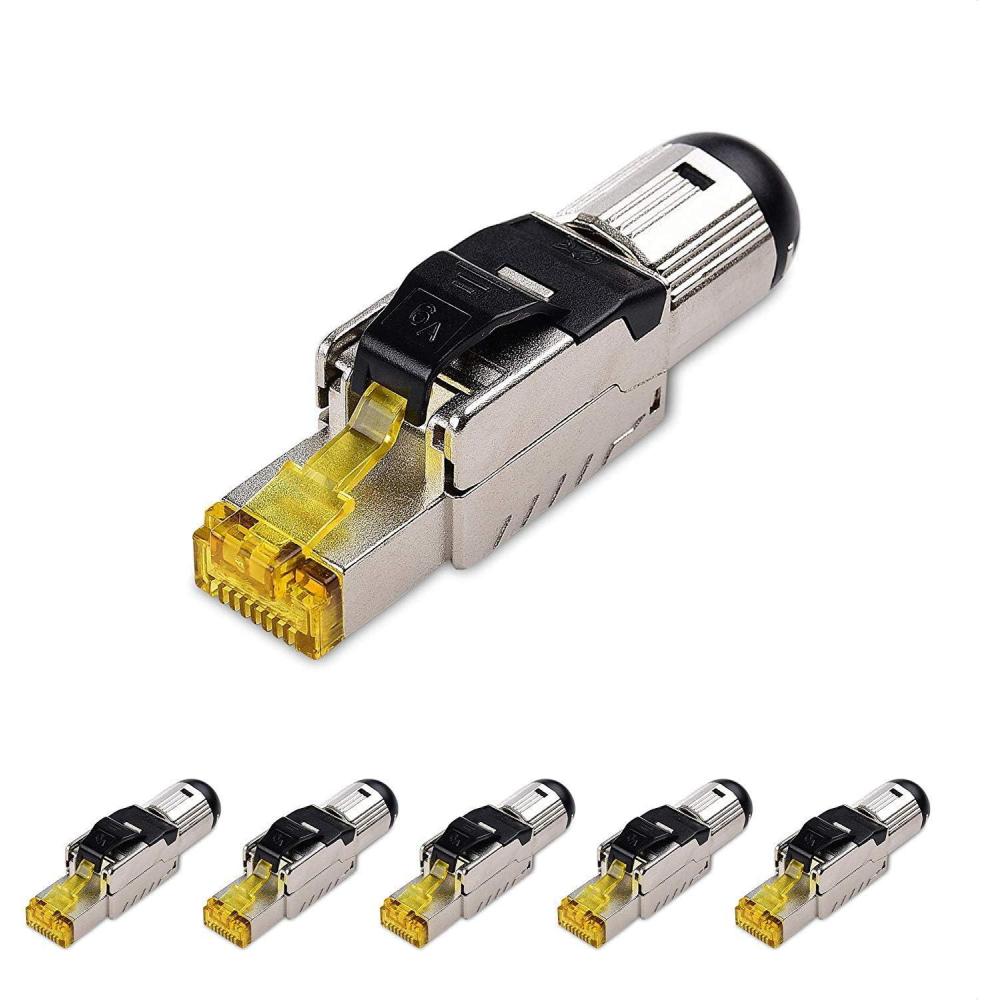

PoE plus compatible with compliant Cat6A Shielded Ethernet cable for IEEE 802.3at Power over Ethernet (PoE+ or PoE) applications; Cost-effective 6 pack of RJ45 connectors provide enough plugs to terminate three Cat6A Ethernet cables
