Description

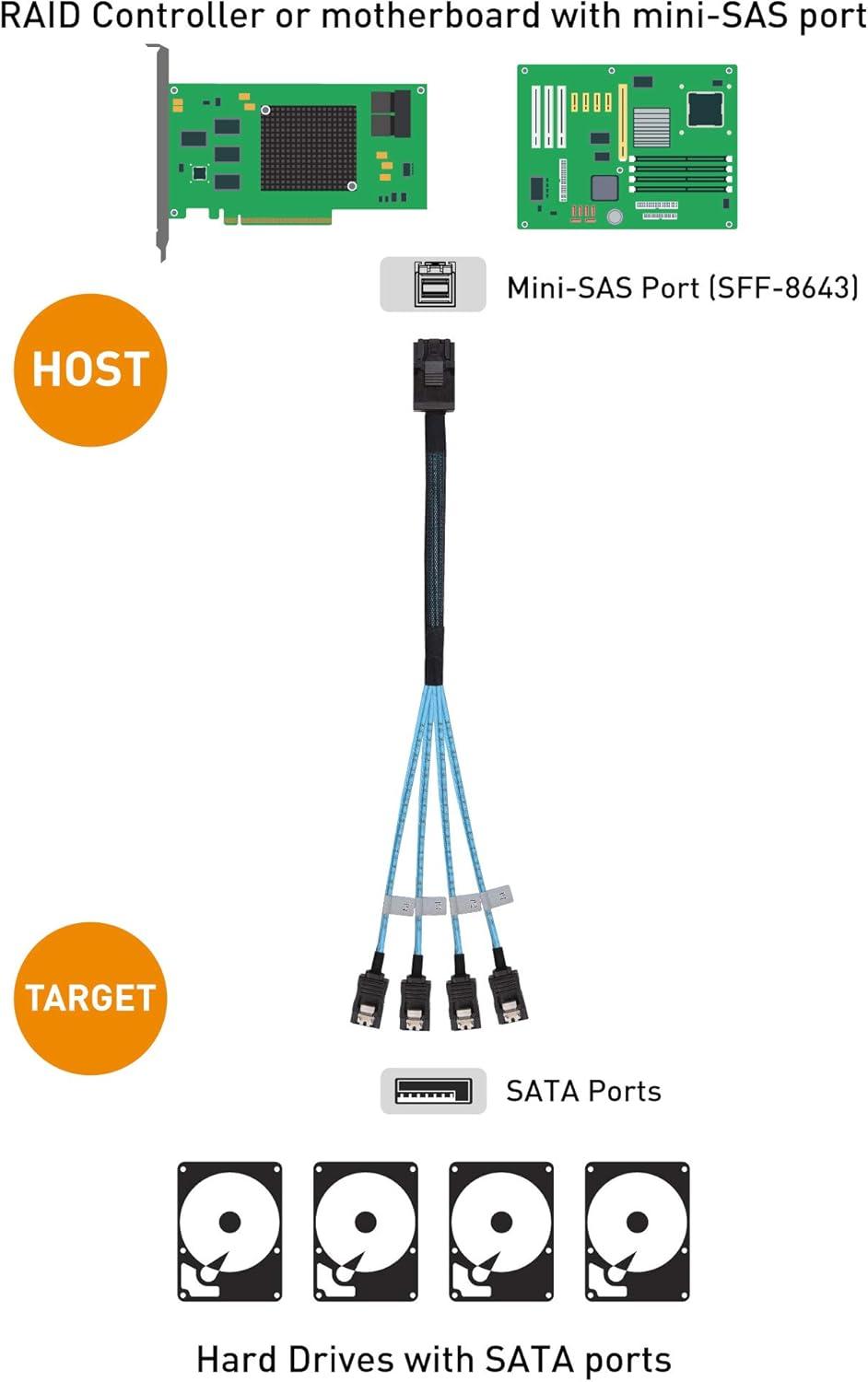

Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug
Hybrid high density SAS to SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

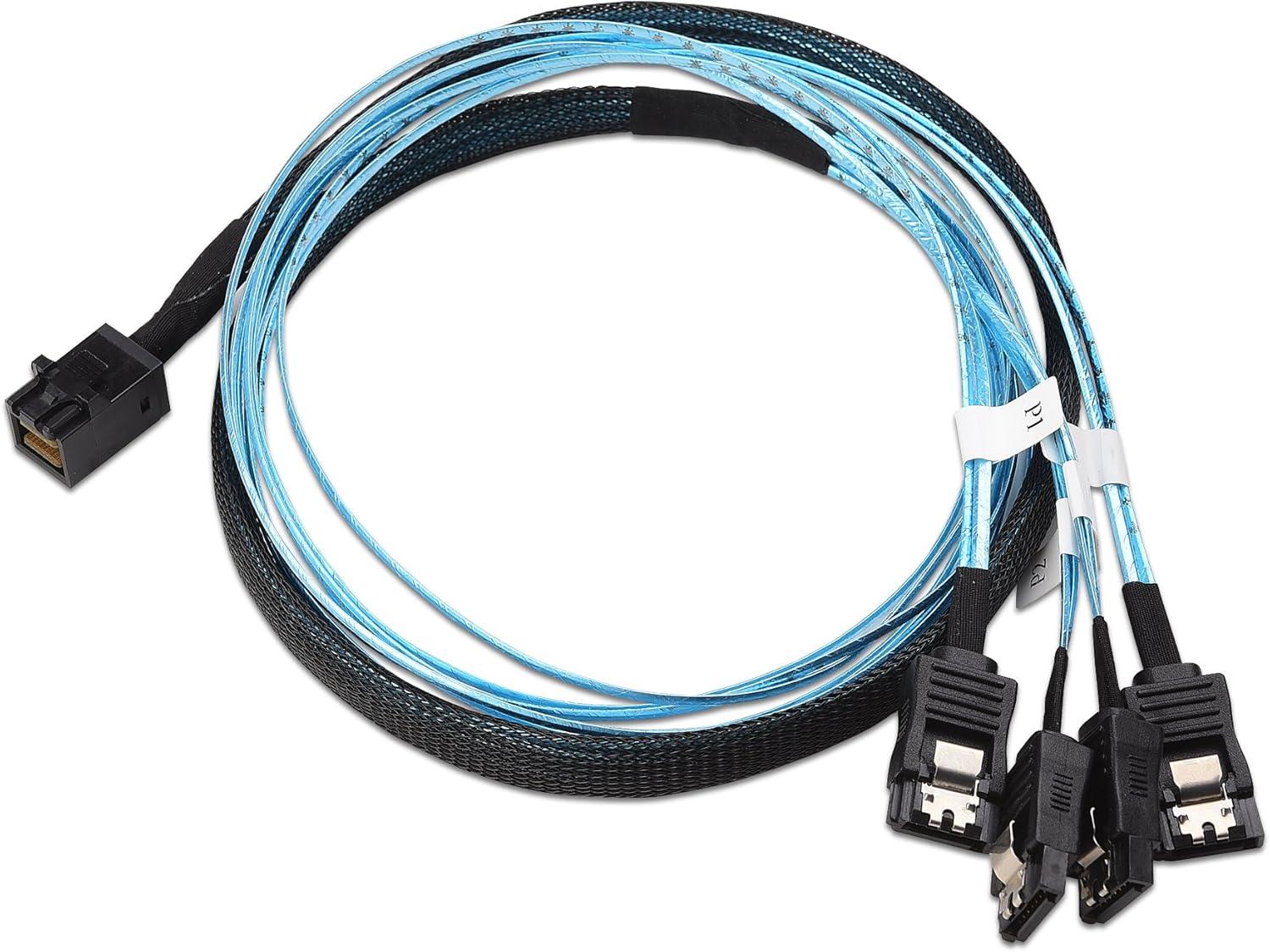

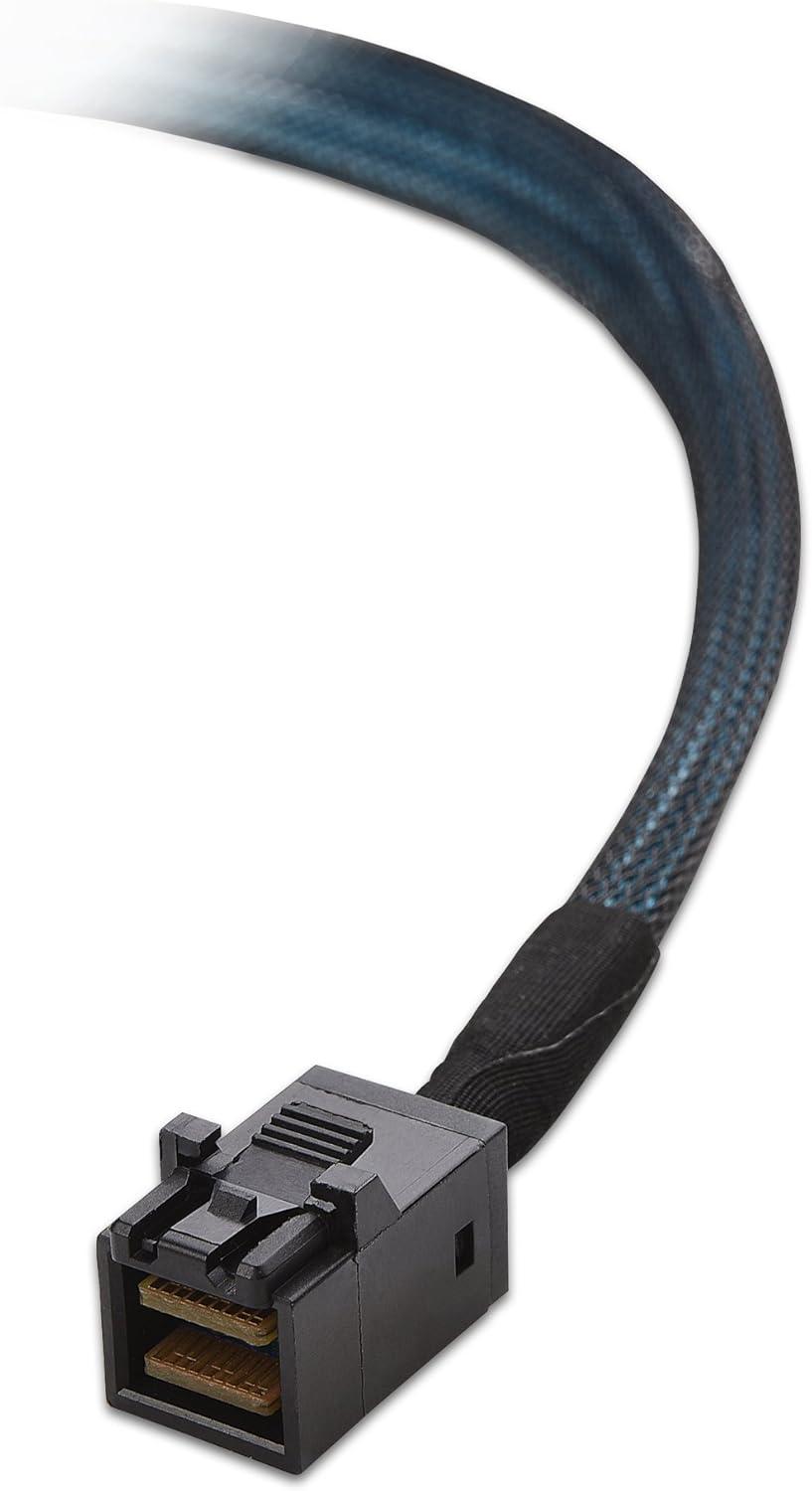

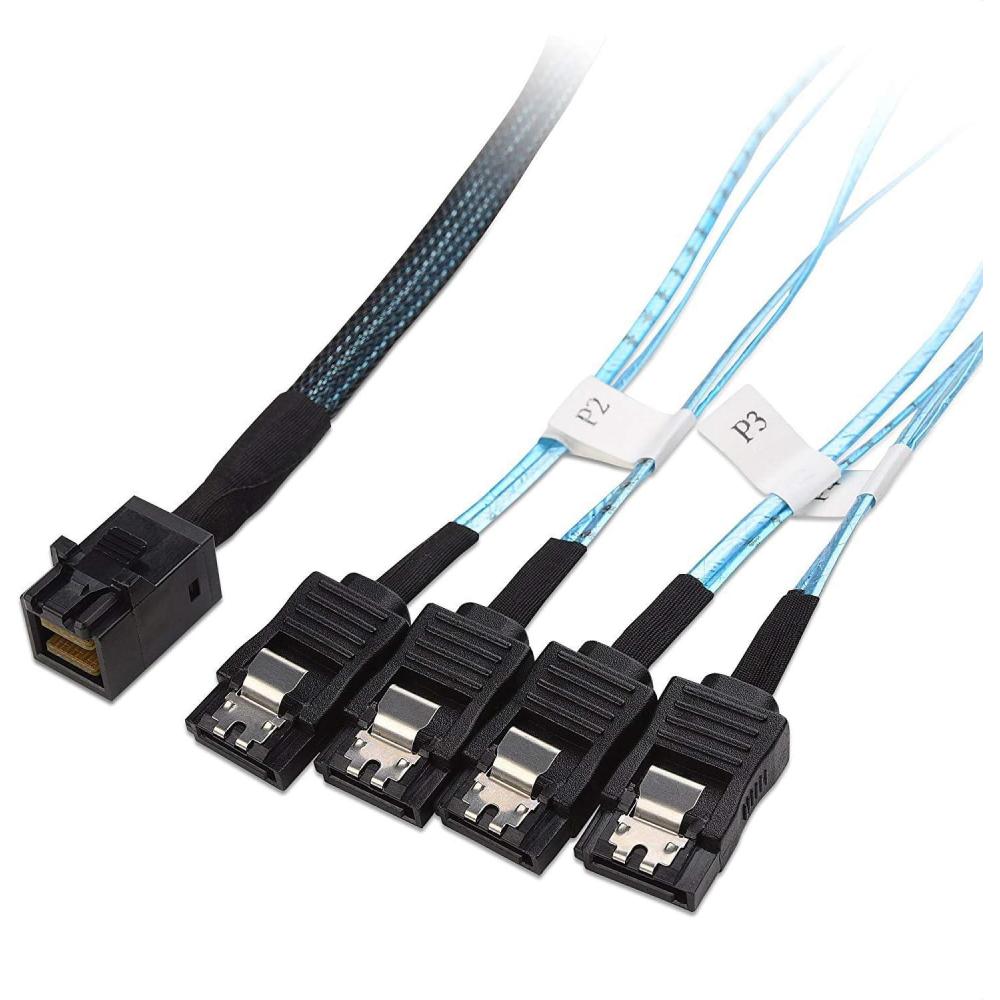

Forward fan-out cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection
Multi-lane 8643 to SATA CABLE with 4 channels can drive 4 SATA drives; Supports multiple lanes of high speed SATA traffic over a single cable; SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers

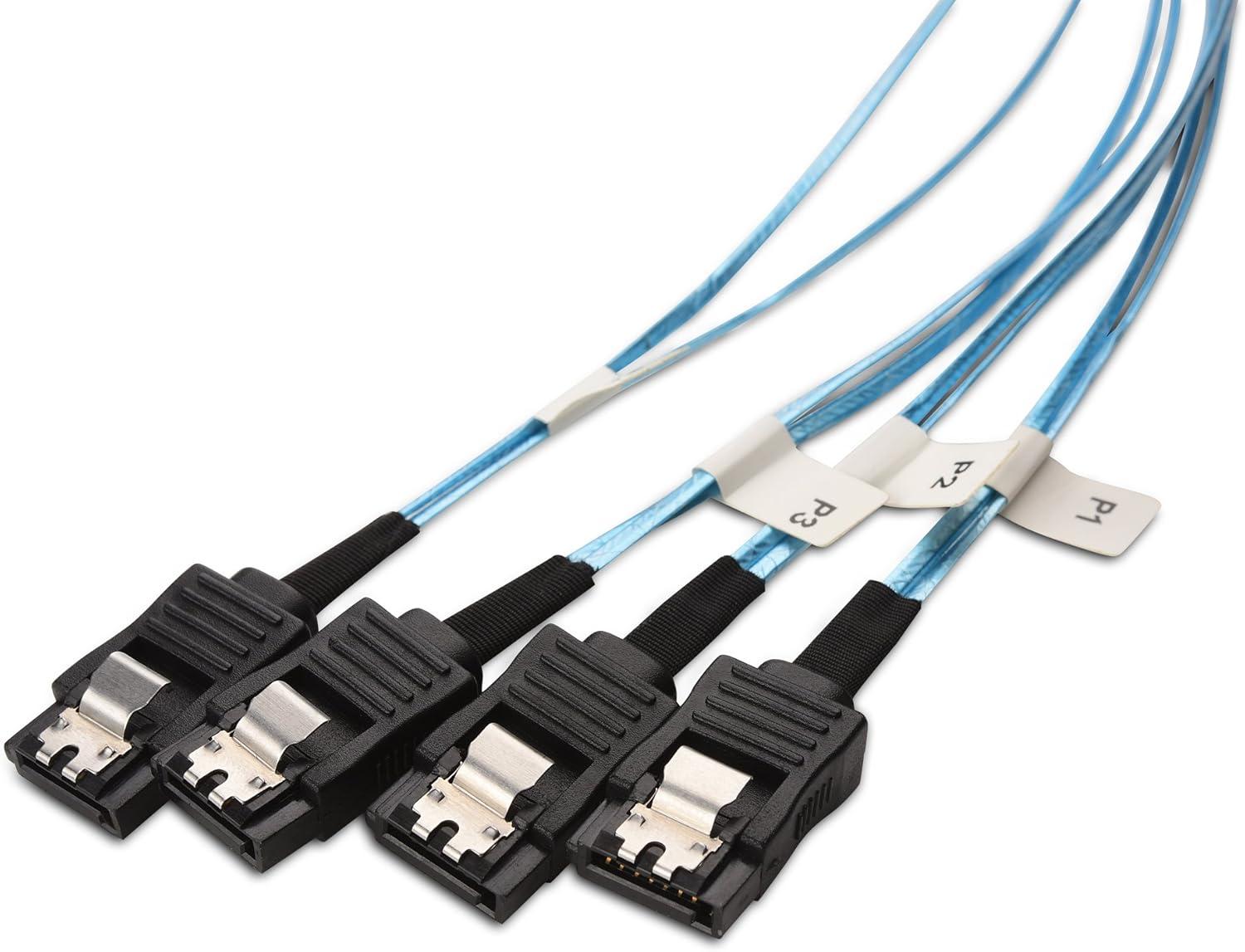

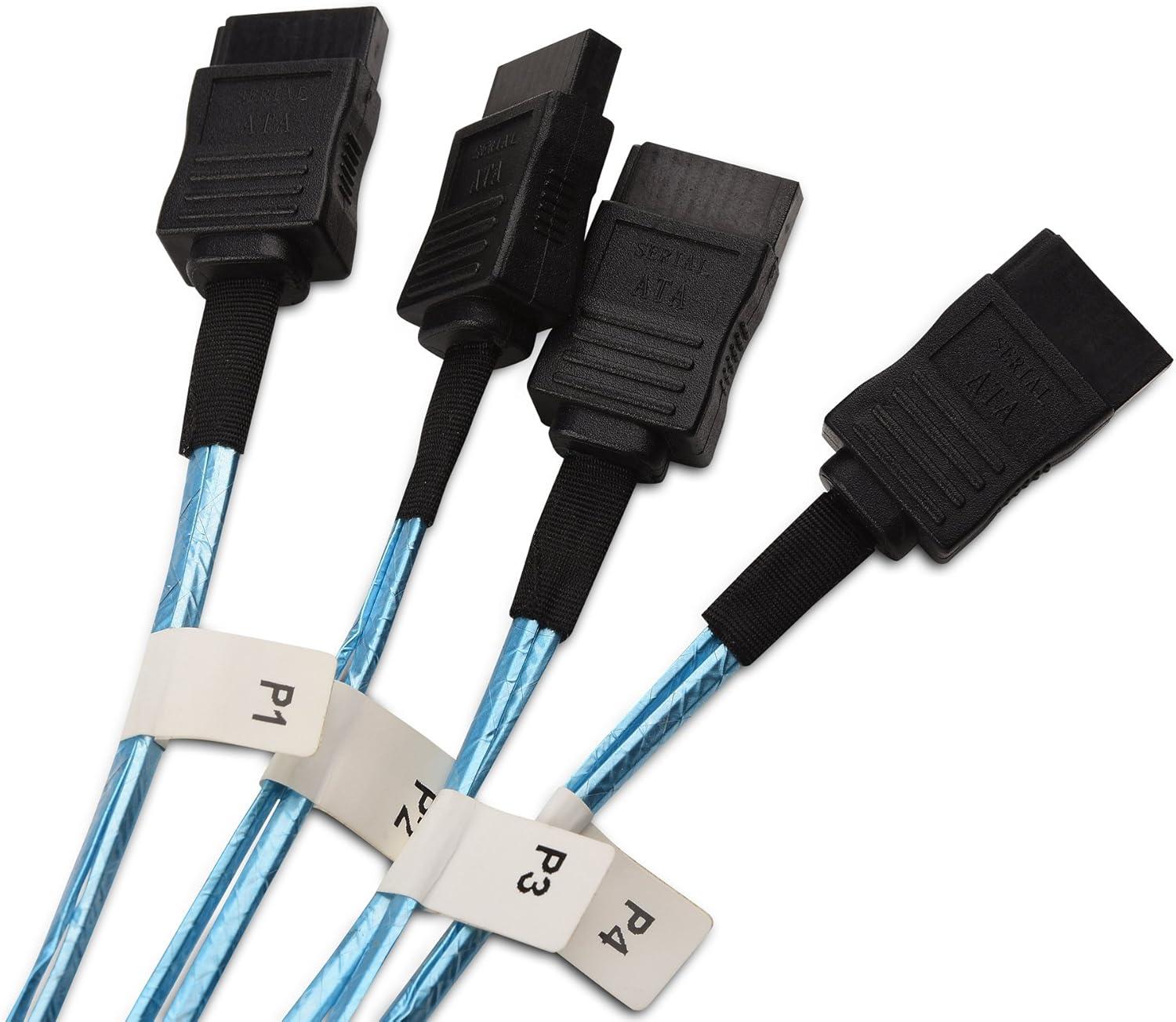

Flexible design of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration
