Description
Single USB-C cable docking solution for a computer with a USB-C or Thunderbolt 3 port; Convenient USB-C Dock wired solution with the flexibility to use wirelessly with a WiGig computer; WiGig BASIC DOCK supports 60 GHz wireless technology with WiGig enabled Windows computers; COMPATIBLE with ultrabooks and 2-in-1's with 5th, 6th, 7th, 8th generation Intel Core vPro processors enabled with Intel Tri-Band Wireless (17265 802.11ad WLAN module) and equipped with an Intel WiGig antenna

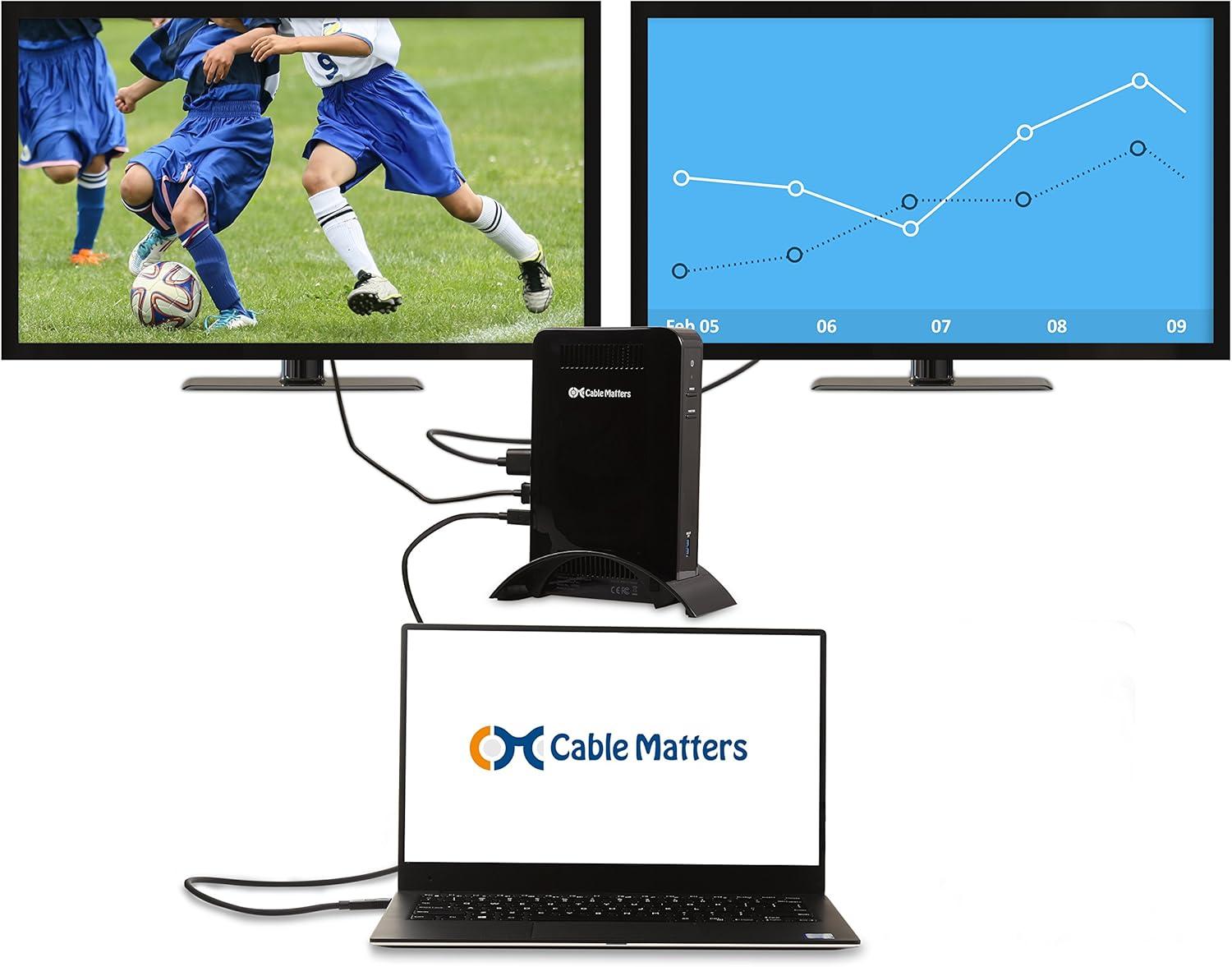

Dual displays to two external displays with HDMI and DisplayPort (dual at HD 1080 or single at 2K); Connect up to four USB 3.0 or 2.0 Type-A peripherals; Add Gigabit Ethernet network connectivity and an audio headset or microphone; Cradle stand stabilizes the Dock in a vertical position
USB-C docking station connection is Thunderbolt 3 port compatible and offers power delivery for charging a laptop up to 60 watts; Compatible with Windows computers such as the Yoga 900/910, ThinkPad X1 Carbon (5th gen) Dell XPS 12 / 13 / 15, Alienware 13 / 15 / 17, Precision 15 / 17, Razor Blade Pro/Stealth
Wigig connection compatible with WiGig equipped (Intel Tri-Band Wireless) models of the DELL Latitude 7270, 7370, 7470, 7250, 7450, 5270, 5470, 5570, 5250, 5450, 5550,7350; ThinkPad X1 Carbon, X1 Yoga, X1 Tablet, T460s, T460, X260, Yoga 260
Wirelessly auto-dock your computer to the WiGig dock when it is in range; Auto-disconnect when you leave; Intelligent Dock remembers your computer after the initial pairing; Using the USB Type-C dock function disables WiGig

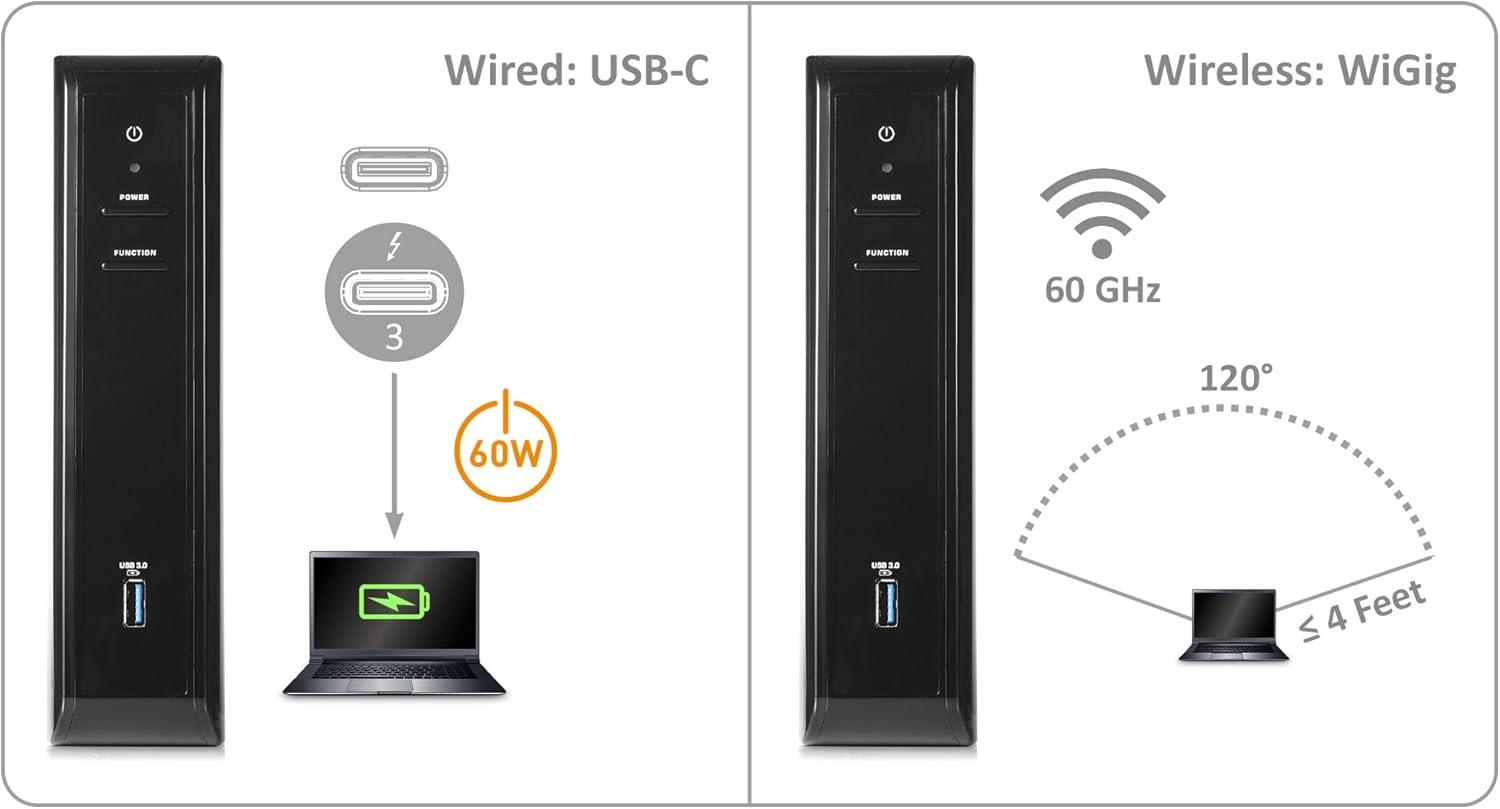

USB-C Wired or WiGig Wireless Docking Option

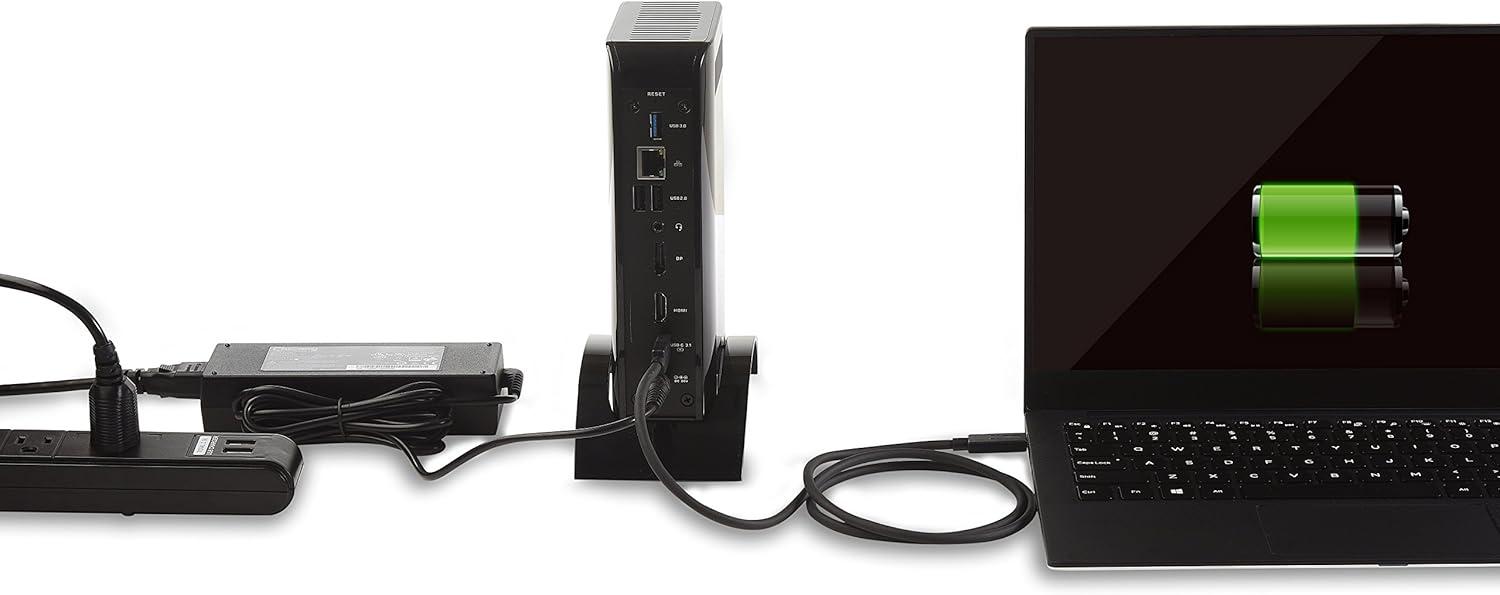

Connect your Windows computer to displays with HDMI and DisplayPort, and a headset or microphone. Add Gigabit Ethernet connectivity and connect USB 2.0 or 3.0 peripheral devices. Provides laptop charging up to 60 watts for a computer with Thunderbolt 3 and a USB 3.0 charging port for a smartphone.
Wireless Docking Just Got Real
The Cable Matters 60 GHz Wireless Docking Station with WiGig technology offers fast and simple docking to WiGig enabled computers. After the initial pairing, the Dock automatically recognizes and connects to your computer when it is in range.
Technical Specifications
– Host – WiGig: 60 GHz 802.11ad
– Host – Wired: USB-C 3.1 with power delivery
– HDMI: Video
– DisplayPort: Video
– Ethernet Network Port: RJ45 8P/8C 568B
– USB 3.0 (front panel): Type A 2.1A charging
– USB 3.0 (rear panel): Type A
– USB 2.0: 2 x Type A
– Audio Combo Port: 2.1 channel speaker or mono microphone
– Dock Power Input / Output: AC 100-240V / DC 20V/5A
– Power Delivery USB-C: Upstream 5/12/20V @ 3A Max 60W
– OS Support: Windows 10
Important Notes
– Wireless connection to Dock is disabled when a USB-C host is connected
– USB-C computer must support Alternate Mode to view HDMI video
– USB-C computer must support power delivery to charge a laptop

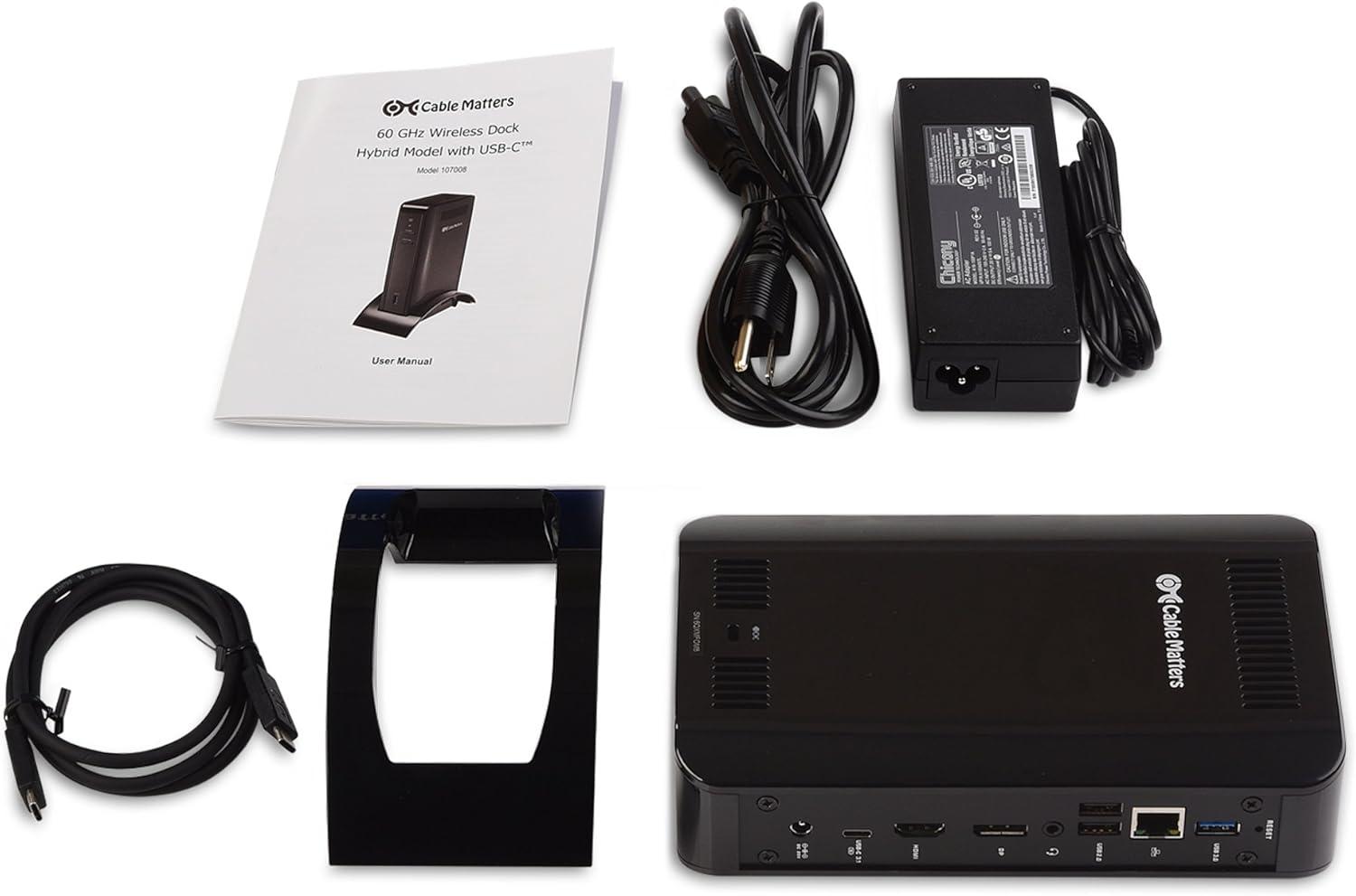

Package Contents
1 x 60 GHz Wireless Dock
1 x Cradle Stand
1 x USB-C Cable
1 x AC Power Adapter
1 x User Manual
Warranty
Limited One-Year Warranty
